Biological Microscope BM-8C (biobase-0930) Products
| Name | Biological Microscope BM-8C |
| Code | biobase-0930 |
| Type | Standard |
| Brand | Biobase |
| Category | Optical Instruments |
| subcategory | Microscope |
| Unit | pcs (pcs) |
| test In Stock | Yes |
| Berminat hub kami: |  |
Product details for Invoice

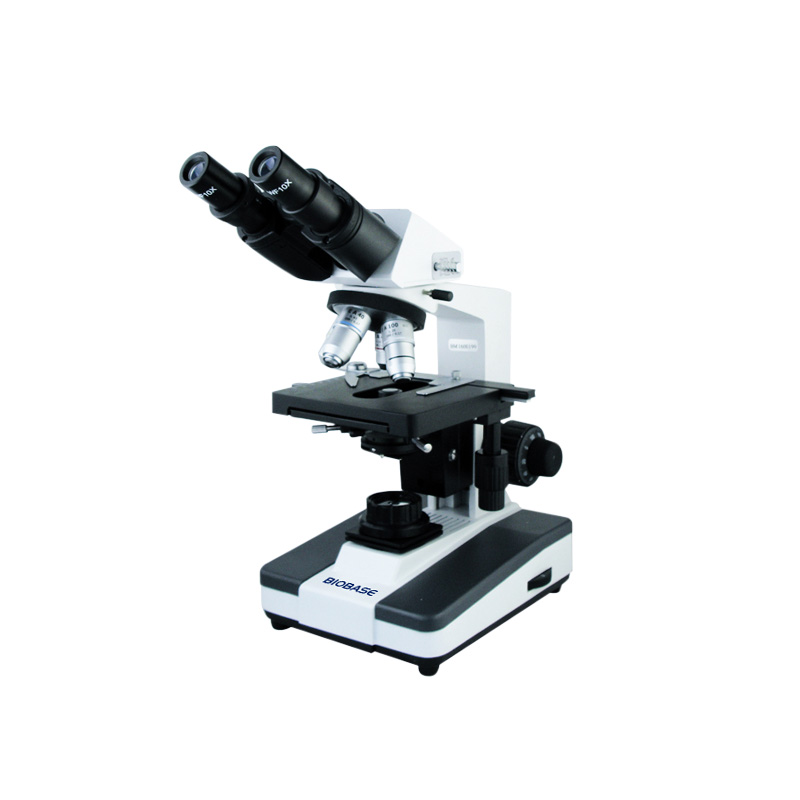

Biological Microscope BM-8C
Product Details
Biological Microscope BM-8C
Technical Parameters:
Model | BM-8C |
View Head | Compensation free binocular head, Inclined at 30°, 360° rotatable, Interpupillary 55~75mm |
Eyepiece | P10X/18mm, P16X/11mm |
Objective | 4X N.A=0.10 WD=37.50mm |
10X N.A=0.25 WD=7.31mm | |
40X N.A=0.65 WD=0.63mm | |
100X(Oil) N.A=1.25 WD=0.18mm | |
Focusing | Coaxial Coarse ＆ Fine Adjustable System, Range 30mm, Fine Division 0.002mm |
Stage | Double Layers Mechanical Stage 155*145mm, Moving Range 80*50mm |
Condenser | Abbe NA1.25 centerable condenser with Iris Diaphragm ＆ Filter |
Illumination | Halogen lamp 6V/20W, Kohler illumination, brightness adjustable |
Filter | Blue, yellow, green |
Power Supply | AC85~265V， 50/60Hz |
Package Size | 355*265*495mm |
Gross Weight | 6kg |
