| Name | Continuous Flow Ultrasonic Cell Disruptor |
| Code | biobase-0545 |
| Type | Standard |
| Brand | Biobase |
| Category | Pre-Processing Of Bio-Samples |
| subcategory | Ultrasonic Cell Disruptor |
| Unit | pcs (pcs) |
| test In Stock | Yes |
| Berminat hub kami: |  |
It is suitable for the extraction of Chinese herbal medicine, cells, bacteria and emulsifying chemical nanometer material, suitable for small batch production or to provide accurate technical parameters for the future industrial production.
Features:
* LCD Display
* Automatic tracking the frequency
* Storage capacity: 20 groups of program data.
* It can test and control temperature of the sample
* Function of automatic feeding and computer control can be optional equipped
Technical Parameters:
|
Model |
UCD-4000W-II |
|
Frequency |
19.5-20.5KHz |
|
Standard Amplitude-change Pole 0 |
40mm |
|
Crushing Capacity/Once |
500〜10000ml |
|
Crushing Capacity/Continuously |
100L/Day |
|
Max.Consumption |
1000〜4000W, Adjustable |
|
Time Set |
Optional: Continuous/Pulse |
|
Max. Working Time |
99h59min59sec |
|
Safety System |
Over temperature; Time; Overload;No load |
|

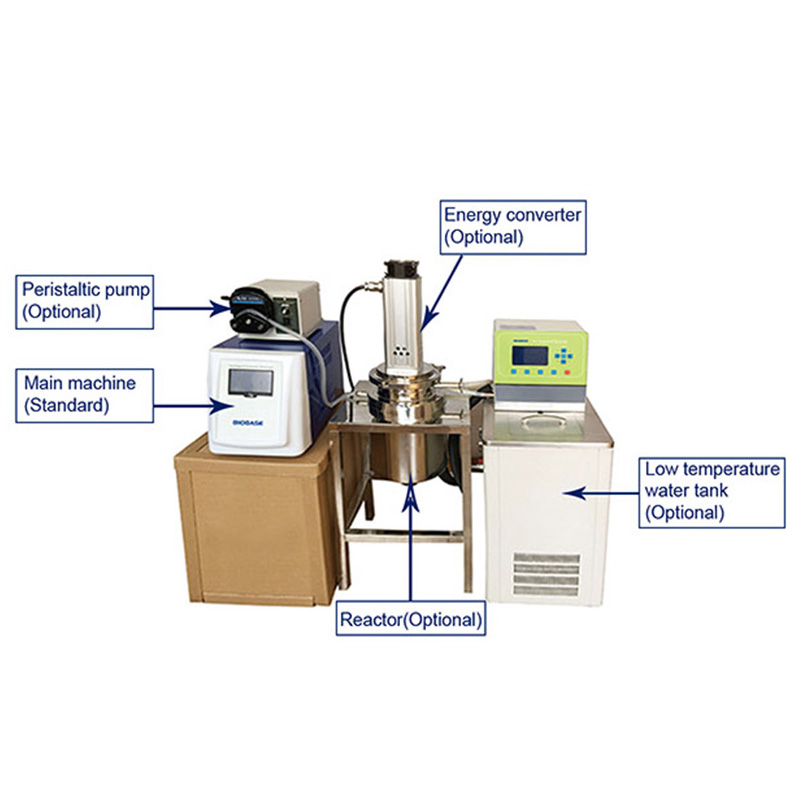

Standard Accessories |
Main machine, energy converter, standard amplitude, sound proof box(or supporting frame) |
|
Optional Accessories |

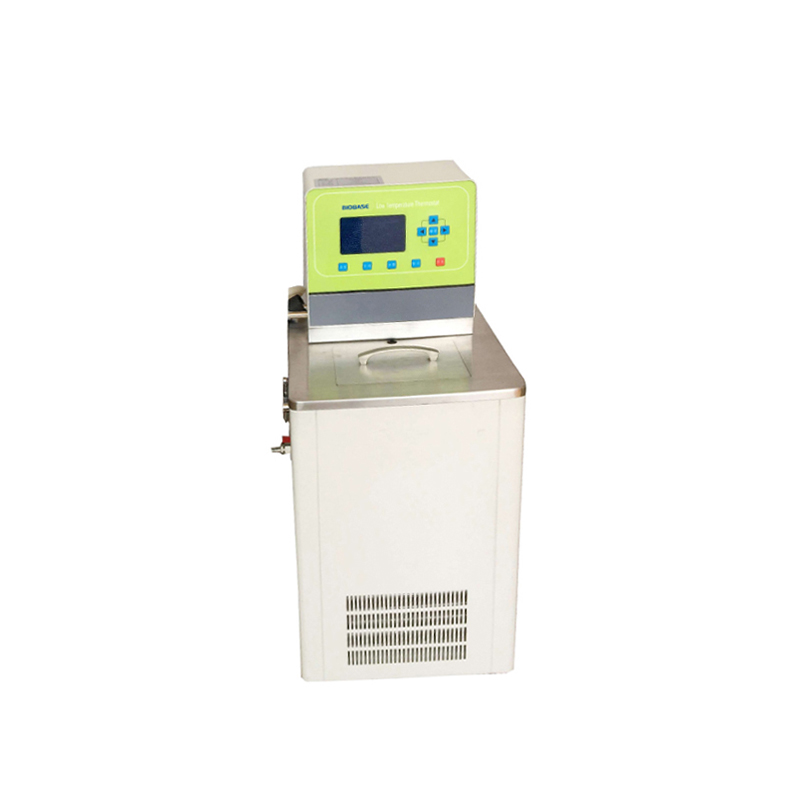

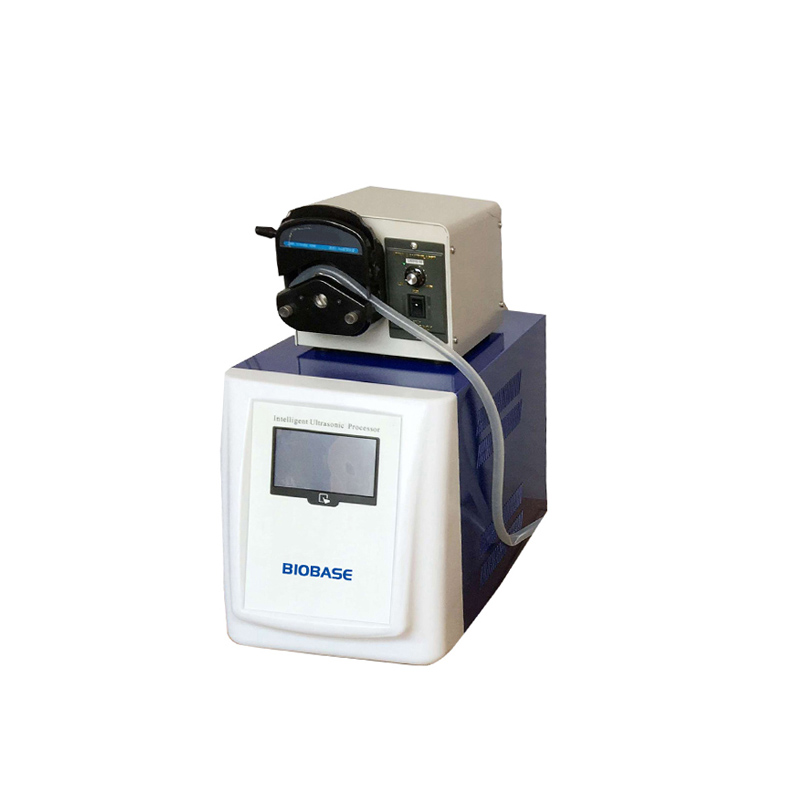

Stainless steel reactor, peristaltic pump, low temperature water tank |
|
Power Supply |
AC220V±10%, 50/60Hz(Standard); AC 110V, 60Hz(Optional) |
|
Package Size(W*D*H) |
675*305*450mm(main body); 430*415*730mm(soundproof box) |
|
Gross Weight |
32kg |
