Multi-position Hotplate Magnetic Stirrer MS-H280-S4 MS-H280-S6 (biobase-0732) Products
Name Multi-position Hotplate Magnetic Stirrer MS-H280-S4 MS-H280-S6
Code biobase-0732
Type Standard
Brand Biobase
Category Other Lab Equipments
subcategory Stirrer
Unit pcs (pcs)
test In Stock Yes
Berminat hub kami: wa chat
Product details for Invoice
Compatible with various heating block or reaction vessels for a variety of application scenario Ultra space-saving with 4/6 channel integrated in one instrument
Product Details

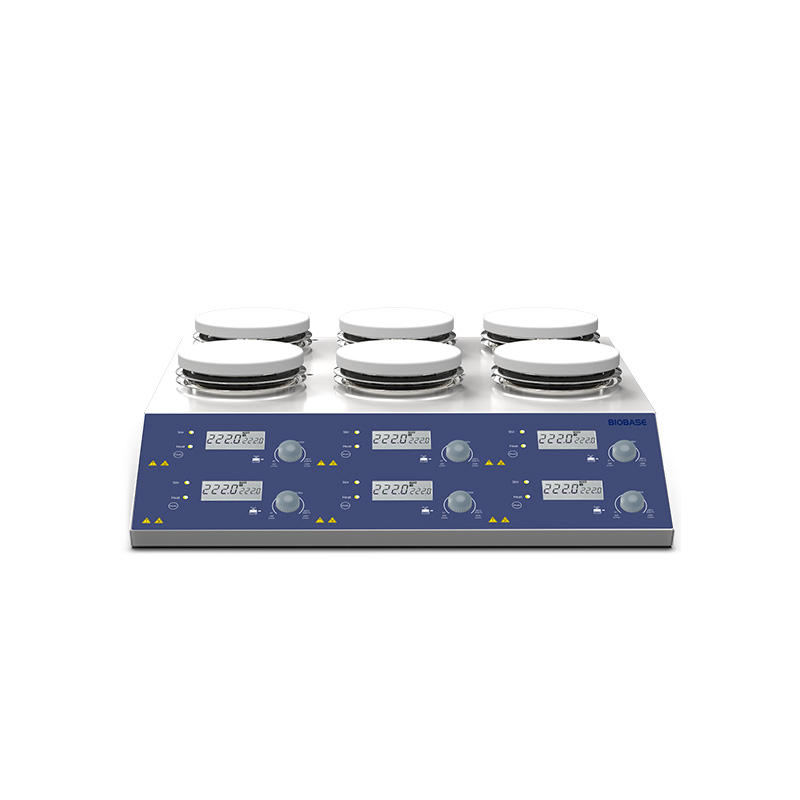

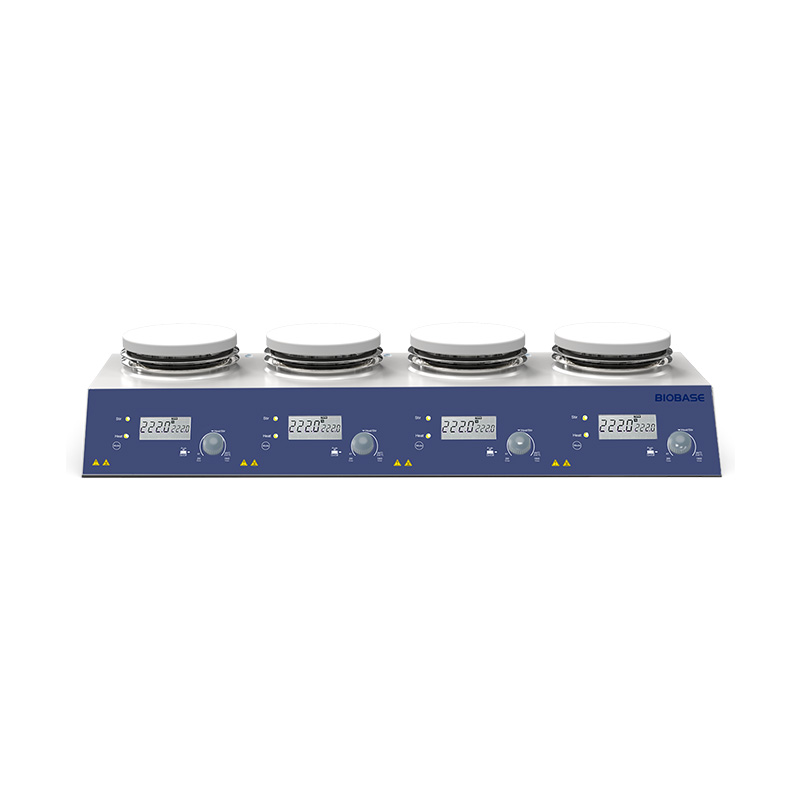

Multi-position Hotplate Magnetic Stirrer MS-H280-S4 MS-H280-S6

Features

1. 4/6 channels with independently control of start/stop, temperature, speed and display for better parallel experiment control.

2. Ceramic coating aluminum work plate with fast heat transmission and strong resistance to corrosion.

3. Powerful, rapid heating with accurate PID temperature control

4. Spark-free DC brushless motor with extended life and no maintenance

5. Compatible with various heating block or reaction vessels for a variety of application scenario

Ultra space-saving with 4/6 channel integrated in one instrument

6. "HOT”warning flashes on the LCD display if the work plate temperature is above 50°C after the user turn off the power switch.

7. Two independent safety circuits keep monitoring the instrument.

8. Reliable safety mechanism, competent with tasks without human surveillance.



Technical Parameters

Model

MS-H280-S4

MS-H280-S6

Work Plate Dimension

φ134mm

φ134mm

Work Plate Material

Aluminum with ceramic coating

Aluminum with ceramic coating

Motor Type

Brushless DC motor

Brushless DC motor

Motor Rating Output

5W*4

5W*6

Heating Power

600W*4

600W*6

Total Power

605W*4

605W*6

Power Supply

100-120V,60Hz;200-240V,50Hz

100-120V,60Hz;200-240V,50Hz

Stirring Positions

4

6

Max. Stirring Quantity (H2O)

3L*4

3L*6

Max. Stirring Quantity (H2O) Per Channel

3L

3L

Speed Range

200-1500rpm

200-1500rpm

Speed Control Accuracy [rpm]

±20

±20

Speed Display

LCD

LCD

Temperature Display

LCD

LCD

Heating Temperature Range

25-280°C

25-280°C

Overheating Protection

420℃

420℃

Temperature Display Resolution

0.1℃

0.1℃

Temperature Control Accuracy

±1℃(<100℃),±1%(>100°C)

±1℃(<100℃),±1%(>100°C)

External Temperature Sensor

PT1000(accuracy±0.2℃)

PT1000(accuracy±0.2℃)

IP Protection Class

IP21

IP21

Product Dimension

701*265*127mm

564*523*127mm

Net Weight

8.7Kg

12.7Kg

Permissible Ambient Temperature and Humidity

5~40°C, 80% RH

5~40°C, 80% RH

Packing Size

810*390*250mm

640*600*230mm

Gross Weight

10.8Kg

16.2Kg
