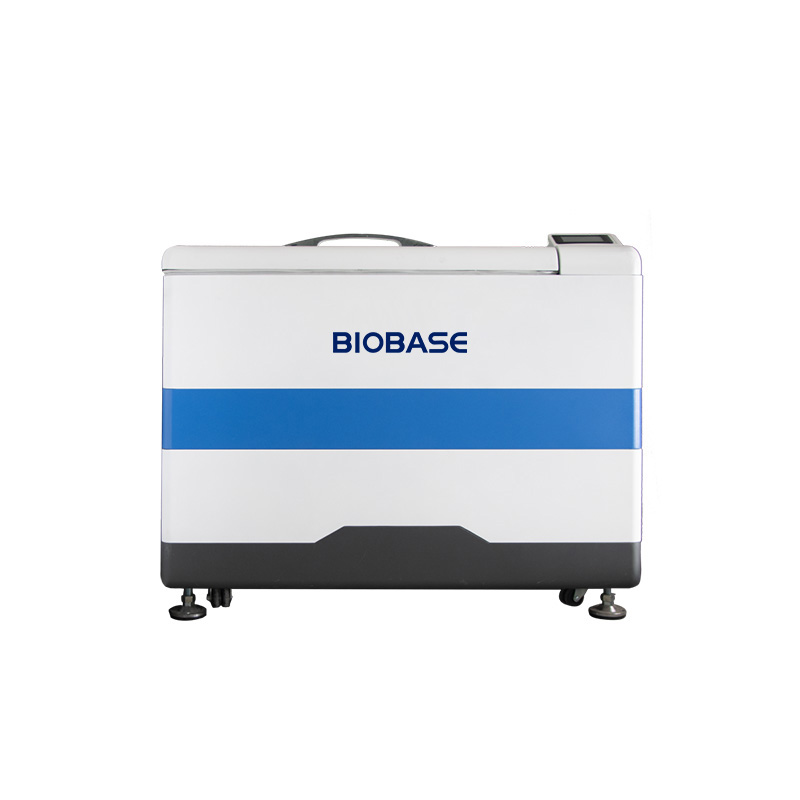

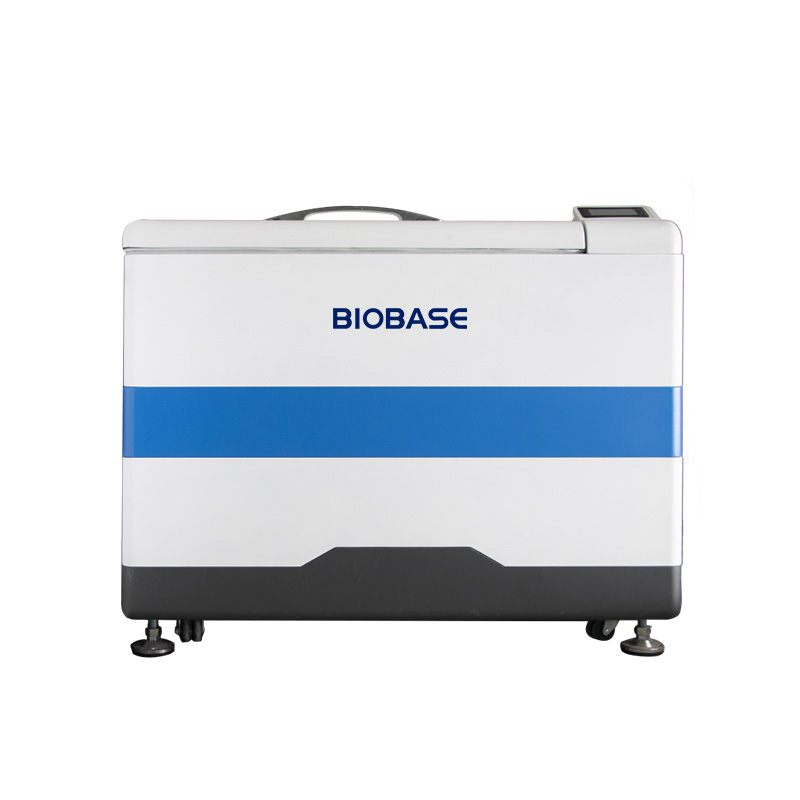

| Name | Horizontal Shaking Incubator BJPX-SW10 BJPX-SW10-L BJPX-SW20 BJPX-SW20-L |
| Code | biobase-0273 |
| Type | Standard |
| Brand | Biobase |
| Category | Laboratory Incubator |
| subcategory | Shaking Incubator |
| Unit | pcs (pcs) |
| test In Stock | Yes |
| Berminat hub kami: |  |
It is used for bacterial culture, fermentation, hybridization, biochemical reaction, enzyme and tissue research with high requirements on temperature and oscillation frequency, used in biological and chemical laboratories, research institutes, etc.
Features:
1. Double Perspective Window
The large double-glazed observation window is both thermally insulated and sturdy, making it easy to watch the situation inside the box at any time.
2. Large Capacity
The super large internal space can hold up to 6 Erlenmeyer flasks with a capacity of 5000ml.
3. Humanized Design
The overall rounded corner design, micro switch, door opening and closing damping buffer, etc., protect the safety of operators in multiple directions.
4. Alarm Function
It has various alarm functions such as over-temperature, low-temperature, door opening, etc., to protect the safety of experimental samples to the greatest extent.
Technical Parameters:
Model | BJPX-SW10 | BJPX-SW10-L | BJPX-SW20 | BJPX-SW20-L |
Shaking Amplitude | 26mm | |||
Shaking Method | Rotatory type | |||
Display | 5-inch LCD | Button display | 5-inch LCD | Button display |
Temp. Control Range | RT+5~60℃ | 4~60℃ | ||
Shaking Plate Size | 900*470mm | |||
Standard | Flask clamps 250ml*28/500ml*24/1000ml*15/2000ml*8/3000ml*6/5000ml*6. If no request, 500ml*24 is default | |||
Rotation Range r/min | 30~300 | |||
Rotation Precision r/min | ±1 | |||
Temp. Resolution ℃ | 0.1 | |||
Temp. Fluctuation ℃ | ≤±0.5 | |||
Temp. Uniformity ℃ | ≤±1（at 37° C） | |||
Ambient Temp. ℃ | 15~35℃ | |||
Illumination | 1 pc of light | |||
UV | 2 pcs of UV lights | |||
Chamber Size mm | 970*550*460 | |||
External Size mm | 1280*760*1030 | |||
Curve Programming Set | Repeat, pace, eight curve programming setting | |||
Time Set Range | 0~999min | |||
Power | 1500w | |||
Power Supply | Standard: 220V 50/60Hz; Optional: 110V 50/60Hz | |||
Packing Size | 1340*880*1212mm | |||
Gross Weight | 330kg | |||
Accessories:
Model | BJPX-SW10 | BJPX-SW10-L | BJPX-SW20 | BJPX-SW20-L | |
Max Flask Qty | 50ml | 95 | |||
100ml | 64 | ||||
150ml | 42 | ||||
250ml | 40 | ||||
500ml | 28 | ||||
1000ml | 15 | ||||
2000ml | 8 | ||||
3000ml | 6 | ||||
5000ml | 6 | ||||
Universal Spring Rack Qty | 1 | ||||
Tube Rack Qty | 3 | ||||
96 Elisa Plate | 20 | ||||
Rod Type Shaking Plate | 2 | ||||
