Features:

* IVC mouse cage system is composed of three parts: cage box, cage frame and main machine.

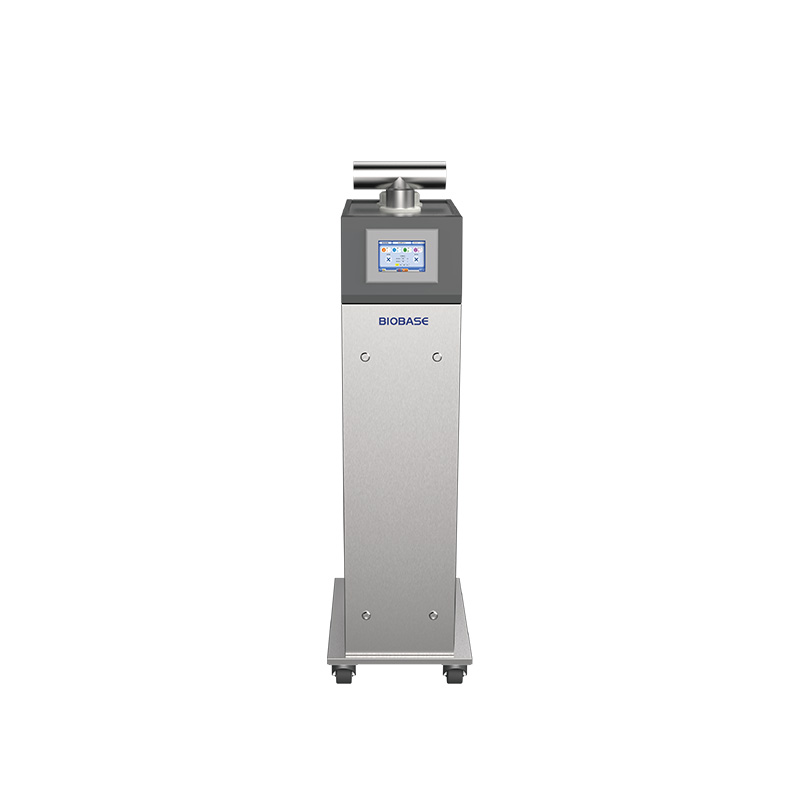

Main Machine

* PLC or MCU control， control, inlet and exhaust fans are well-known domestic brands, stable and reliable operation.

* With high-precision wind speed pressure difference sensor, temperature and humidity sensor.

* Built-in UPS, the fan continues working when the external power supply interrupted.

* With filter timing function to remind users to update the filter.

* With abnormal parameters alarm, filter life alarm, power failure alarm.

* Supporting remote monitoring through computer or mobile phone(PLC).

Main Machine Technical Parameters:

Cage Frame

* Cage frame material is SUS304 stainless steel.

* The gas pipe and the cage box are connected by a silicone gas nozzle. The inlet and exhaust vents of the cage box and cage frame adopt non-invasive structure.

* Inlet and exhaust duct can be disassembled for easy cleaning and disinfection.

* 4 inch PU wear-resistant universal wheel, no scratching PVC floor, flexible movement without noise. The arc angle structure prevents the damage of the during handling.

* The vertical and horizontal positions of the cage frame are numbered with letters such as A, B, C and numbers such as 1, 2, 3, which is convenient for experiment management.

* The cage guide rail is made of ABS engineering plastic, and with instructions for cage installation in place (if not in place, there are light instructions to remind the operator).

Cage Box

* The cage box is composed of plastic base box, box cover, stainless steel mesh cover, drinking bottle and record card. The box cover has exhaust valve, silicone sealing circle and hasp.

* Base box and cover are molded by PPSU or PSU plastic. PPSU thermal deformation temperature>180℃, steam sterilization for more than 500 times without deformation on condition that 205 kPa, 134°C, 5min. Thermal deformation temperature of PSU material> 150℃, steam sterilization over 200 times without deformation on condition that 205 kPa, 134°C, 5min.

* The cage box and 500ml drinking bottle are autoclavable.

* The box cover exhaust outlet is provided with a metal filter (25*50mm) to prevent the dust in the cage from being inhaled the cage frame and blocking the pipeline.

* The ventilated window is directly connected to the outside world, covered with 0.2µm high efficiency filter membrane, which can be directly washed and autoclavable.

* After the cage box is removed from the cage frame, the air inlet and exhaust valves of the cage box will automatically close immediately.

Rat IVC Cage System

Introduction:

The rat IVC cage system is composed of intelligent main machine, cage frame, cage box and other parts. It is suitable for feeding and experiment of clean grade or SPF grade less harmful infected rats, especially suitable for raising immunodeficient and transgenic animals, to effectively ensure the safety of operators, animals and the environment.

Technical Parameters:

Mouse IVC Cage System

Introduction:

It is composed of intelligent main machine, cage frame, cage box and so on. It is suitable for feeding and experiment of clean grade or SPF grade less harmful infected mice, to effectively ensure the safety of operators, animals and the environment.

Technical Parameters:

Model	Cage Number	Cage Frame Size(L*W*H)	Cage Box Size(L*W*H)	Cage Frame ＆ Cage Box Package Size(mm)	Cage Frame ＆ Cage Box Gross Weight
BK-SL385-32（4*8）	32	890*500*1960mm	385*194*172mm	990*600*2110	68kg
BK-SL385-36（4*9）	36	890*500*2020mm	385*194*172mm	990*600*2170	73kg
BK-SL385-40（5*8）	40	1100*500*1960mm	385*194*172mm	1200*600*2110	77kg
BK-SL385-45（5*9）	45	1100*500*2020mm	385*194*172mm	1200*600*2170	82kg
BK-SL385-48（6*8）	48	1310*500*1960mm	385*194*172mm	1410*600*2110	85kg
BK-SL385-54（6*9）	54	1310*500*2020mm	385*194*172mm	1410*600*2170	90kg
BK-SL385-56（7*8）	56	1520*500*1960mm	385*194*172mm	1620*600*2110	90kg
BK-SL385-63（7*9）	63	1520*500*2020mm	385*194*172mm	1620*600*2170	95kg
BK-SL385-64（8*8）	64	1730*500*1960mm	385*194*172mm	1830*600*2110	100kg
BK-SL385-72（8*9）	72	1730*500*2020mm	385*194*172mm	1830*600*2170	105kg
BK-SL385-72（9*8）	72	1940*500*1960mm	385*194*172mm	2040*600*2110	Sharing is caring, show love and share the product with your friends. facebook twitter google+ pinterest tumblr linkedin Whatsapp --> Featured Vertical Planetary Ball Mill(Square Type) Laboratory Solid Processing Equipments - Biobase Pro Series Class II B2 Biological Safety Cabinet Air Protection Product - Biobase BP-B/P Series Electronic Precision Balance Laboratory Analysis Equipments - Biobase Chikungunya IgG/IgM Combo Rapid Test Kit (Colloidal Gold) Clinical Analytical Instruments - Biobase Other Products Ultrasonic Cleaner Single Frequency Type Other Lab Equipments - Biobase BIOBASE HGC Series Portable Pure Water Hydrogen Generator Hydrogen Other Lab Equipments - Biobase Water Purifier(Automatic RO/Ultra-pure Water) Other Lab Equipments - Biobase Mechanized Rock Wool Cleanroom Panel Other Lab Equipments - Biobase × About us Biobase Indonesia Read more 082140385757 admin@biobaseid.com Privacy Policy Terms & Conditions Contact us Payment methods Pembayaran dapat dilakukan melalui bank dibawah ini: Marketplace Kita juga menyediakan transaksi melalui marketplace © 2025 Biobase ID. All rights reserved.
